Dia 40mm-930 Thread Bar
Brand : Xingming Standard: GB/T 20065-2016
Weight: 10.34 kg/meter Yield/Tensile: 1169/1358 KN
Type: Hot Rolled Material : Carbon Steel; Alloy Steel
Thread: Left Hand; Right Hand
Quality control: 100% quality inspected
Surface: Self Color; Zinc Plated; HDG; Epoxy Coating.
Application: Post-Tensioning; Formworks; Geotechnical; Ground Anchors Soil Nailing; Tunneling
Description
marker
PRODUCT DESCRIPTION
Thread Bar/Post-Tensioning Bar
1.Grade: PSB930
2.Dia: 40 mm
3.Length: 9m,12m or as per customers' requirements
4.Technology: Hot rolled, left hand
5.Accessories: full hex nut, wing nut, water stop, Combi nut, Anchor nut,Swivel nut, couplers
6.Packing: in bundle
7.Delivery: 15-30 days
COMPOSITION:
The PSB930 thread bar is made of black steel with a continuous right-handed along the entire length of the bar. The continuous threading allows the cut of the bar with different length according to the design requirements and it also improves the adhesion between the bar and grouting.
Typical Applications:
1.Rock bolts
2.Marine tie rod
3.Foundation construction
4.Steel or Concrete Structure Connection
5.Soil Nailing
6.Temperory anchor
7.Mining & Tunneling
8.Post-tensioning
Thread Bar Coating for Corrosion Protection:
Black or plain: Standard coating
Coating: galvanized(on request)
Coating: epoxy coating(on request)
contact us
Related popular products
Dia 25mm-500 Thread Bar
Brand : Xingming Standard: GB/T 20065-2016 Weight: 4.1 kg/meter Yield/Tensile: 246/309KN Type: Hot Rolled Material : Carbon Steel; Alloy Steel Thread: Left Hand; Right Hand Quality control: 100% quality inspected Surface: Self Color; Zinc Plated; HDG; Epoxy Coating. Application: Post-Tensioning; Formworks; Geotechnical; Ground Anchors Soil Nailing; Tunneling

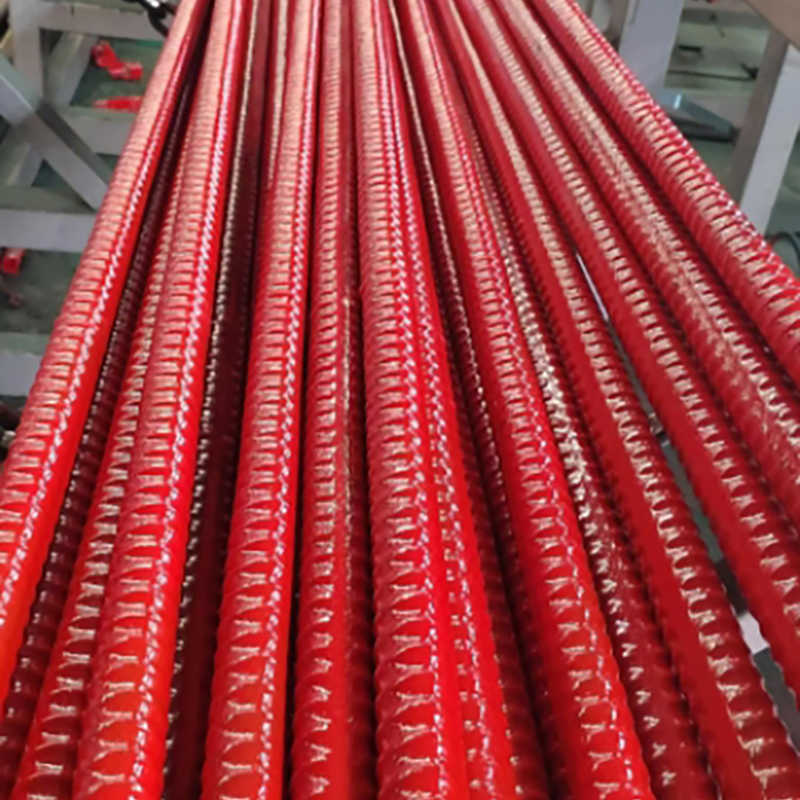

Epoxy coating
Standard: GB/T 25826－2022, JG/T502-2016, IS13620(1993) Coating thickness: 0.15～0.30mm Application: Soil nailing, Anchor bolt , Marine tie, Bridge, high-speed rail,nuclear power station, Hydropower station, etc.

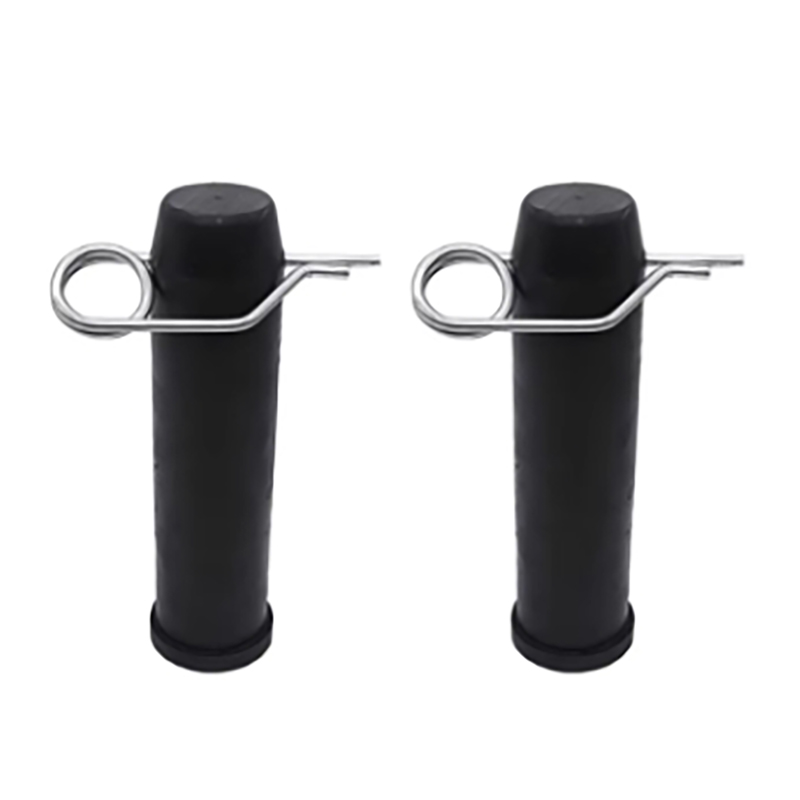

Bailey Bridge Pin
Brand : Xingming Dimensions: D55*200 Model Number: D55 Hardness Grade: HRC28 – 34 Composition: 40Cr Material : Alloy Structural Steel Quality control: 100% quality inspected Surface: Electro Galvanized; Black Oxide Coating Application: Connection of steel bridge trusses
Dia 25mm-930 Thread Bar
Brand : Xingming Standard: GB/T 20065-2016 Weight: 4.1 kg/meter Yield/Tensile: 457/530KN Type: Hot Rolled Material : Carbon Steel; Alloy Steel Thread: Left Hand; Right Hand Quality control: 100% quality inspected Surface: Self Color; Zinc Plated; HDG; Epoxy Coating. Application: Post-Tensioning; Formworks; Geotechnical; Ground Anchors Soil Nailing; Tunneling
Bailey bridge panel
Other Name: 200 /321 style treastle bailey bridge Size: 1500*3000/1500*2000/1500*1500/1500*1000 series Bailey piece Brand: Xingming Place of Origin: Hebei, China Grade: Q345B-Q460C Tolerance: ±1% Standard: GB Type :Heavy Surface treatment : custome color Application: Steel Structure Bridge Quality control: 100% quality inspected Processing Service: Bending, Welding, Decoiling, Cutting, Punching
Bridge chord bolts
Raw materials：45# Size：M36*180 M36*250 Surface：Zinc electroplating；Black Oxide Coating Grade：8.8 Typical Application: Bridge chord bolts are used to fasten the connection and tightening of bridge reinforced chords.

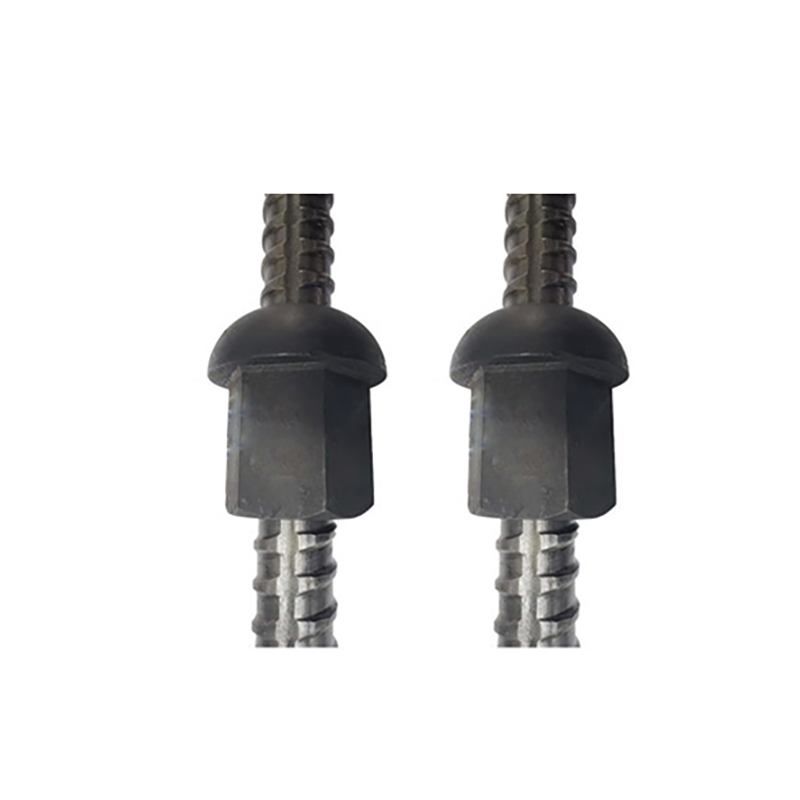

Flat Hex Nut & Spherical Hex Nut
Brand : Xingming Standard: GB/T 20065-2016 Type: Hot Rolled Material : Carbon Steel；45#，40cr Thread: Left Hand; Right Hand Quality control: 100% quality inspected Surface: Self Color; Zinc Plated; HDG Application: Post-Tensioning; Formworks; Geotechnical; Ground Anchors Soil Nailing; Tunneling
Dia 50mm-930 Thread Bar
Brand : Xingming Standard: GB/T 20065-2016 Weight: 16.28 kg/meter Yield/Tensile: 1826/2120 KN Type: Hot Rolled Material : Carbon Steel; Alloy Steel Thread: Left Hand; Right Hand Quality control: 100% quality inspected Surface: Self Color; Zinc Plated; HDG; Epoxy Coating. Application: Post-Tensioning; Formworks; Geotechnical; Ground Anchors Soil Nailing; Tunneling
HDG Nut
Brand : Xingming Standard: GB/T 20065-2016 Type: Hot Rolled Material : Carbon Steel Thread: Left Hand; Right Hand Quality control: 100% quality inspected Surface: Self Color; Zinc Plated; HDG; Epoxy Coating. Application: Post-Tensioning; Formworks; Geotechnical; Ground Anchors Soil Nailing; Tunneling
Dia 20mm-930 Thread Bar
Brand : Xingming Standard: GB/T 20065-2016 Weight: 2.47 kg/meter Yield/Tensile: 292/339 KN Type: Hot Rolled Material : Carbon Steel; Alloy Steel Thread: Left Hand; Right Hand Quality control: 100% quality inspected Surface: Self Color; Zinc Plated; HDG; Epoxy Coating. Application: Post-Tensioning; Formworks; Geotechnical; Ground Anchors Soil Nailing; Tunneling
Coupler
Brand : Xingming Standard: GB/T 20065-2016 Weight: kg/meter Yield/Tensile: Type: Hot Rolled Material : Carbon Steel; Alloy Steel Thread: Left Hand; Right Hand Quality control: 100% quality inspected Surface: Self Color; Zinc Plated; HDG; Epoxy Coating. Application: Post-Tensioning; Formworks; Geotechnical; Ground Anchors Soil Nailing; Tunneling
HDG
Standard: GB/T13912-92, DINEN ISO 1461-2009, AS 1214—1983 Coating thickness: ≥85μm Application: Soil nailing, Anchor bolt , Marine tie, Bridge, high-speed rail,nuclear power station, Hydropower station, etc.

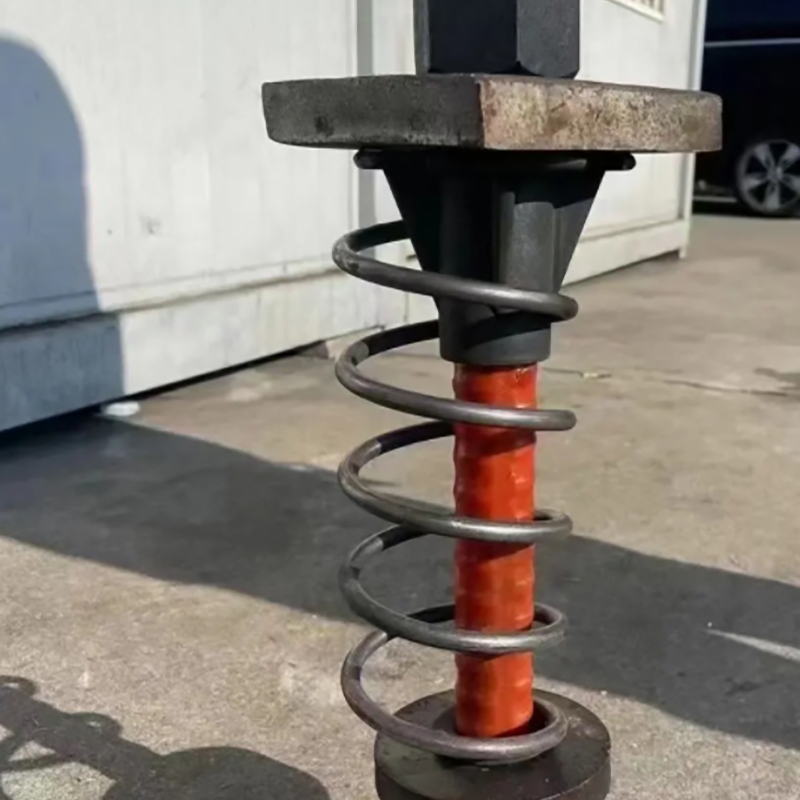

Anchor Head
