Dia 25mm-500 Thread Bar
Brand : Xingming Standard: GB/T 20065-2016
Weight: 4.1 kg/meter Yield/Tensile: 246/309KN
Type: Hot Rolled Material : Carbon Steel; Alloy Steel
Thread: Left Hand; Right Hand
Quality control: 100% quality inspected
Surface: Self Color; Zinc Plated; HDG; Epoxy Coating.
Application: Post-Tensioning; Formworks; Geotechnical; Ground Anchors Soil Nailing; Tunneling
Description
marker
PRODUCT DESCRIPTION

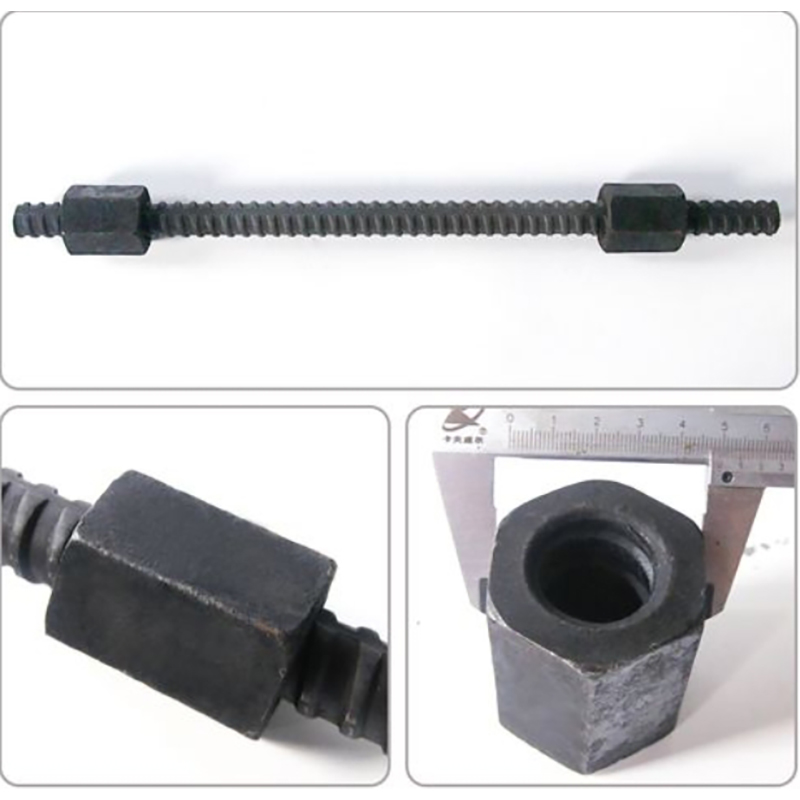

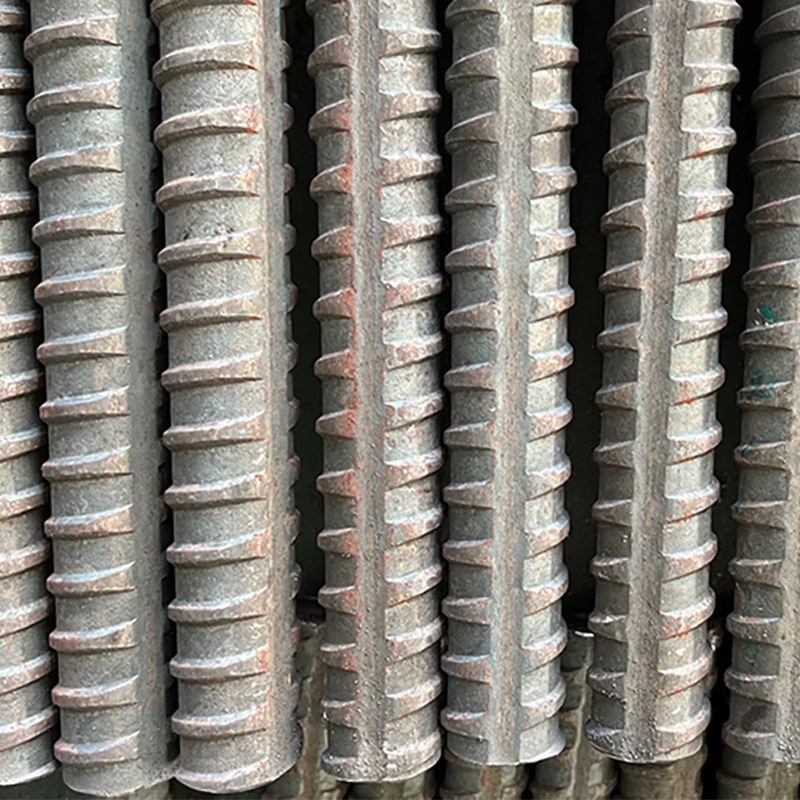

Thread Bar/Post-Tensioning Bar
1.Grade: PSB500
2.Dia: 25mm
3.Length: 12m or as per customers' requirements
4.Technology: Hot rolled, left hand
5.Accessories: full hex nut, wing nut, water stop, Combi nut, Anchor nut,Swivel nut, couplers
6.Packing: in bundle
7.Delivery: 15-30 days
COMPOSITION:
The PSB500 thread bar is made of black steel with a continuous right-handed along the entire length of the bar. The continuous threading allows the cut of the bar with different length according to the design requirements and it also improves the adhesion between the bar and grouting.
Typical Applications:
1.Rock bolts
2.Marine tie rod
3.Concrete anchoring system
4.Formwork tie bar
5.Post-tensioning systems
6.Geotechnical systems
7.Mining & Tunneling
Thread Bar Coating for Corrosion Protection:
Black or plain: Standard coating
Coating: galvanized(on request)
Coating: epoxy coating(on request)
