Dia 20mm-500 Thread Bar
Brand : Xingming Standard: GB/T 20065-2016
Weight: 2.47kg/meter Yield/Tensile: 157/192 KN
Type: Hot Rolled Material : Carbon Steel; Alloy Steel
Thread: Left Hand; Right Hand
Quality control: 100% quality inspected
Surface: Self Color; Zinc Plated; HDG; Epoxy Coating.
Application: Post-Tensioning; Formworks; Geotechnical; Ground Anchors Soil Nailing; Tunneling
Description
marker
PRODUCT DESCRIPTION

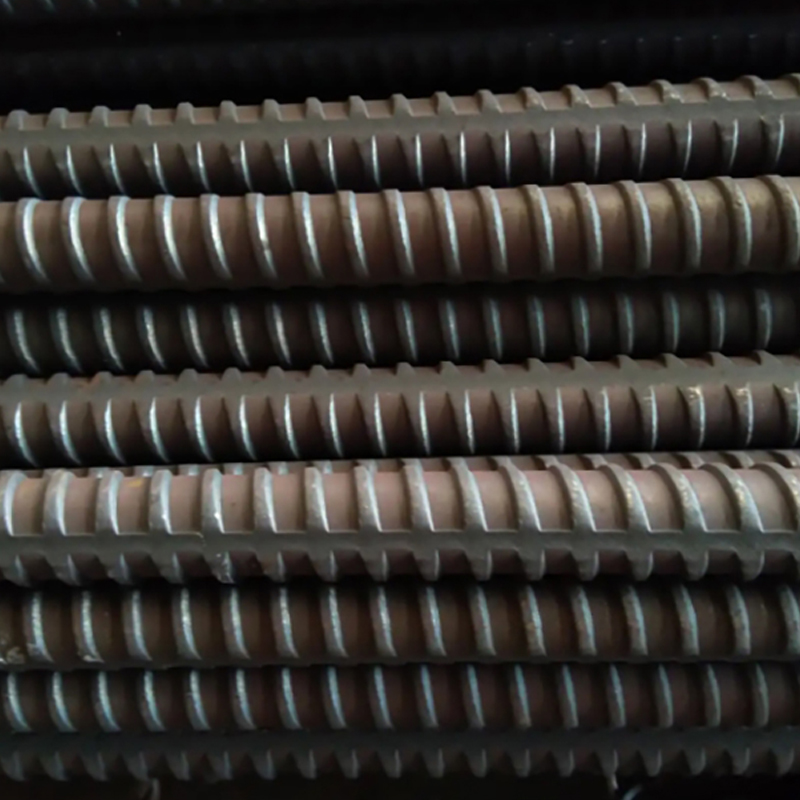

Thread Bar/Post-Tensioning Bar
1.Grade: PSB500
2.Dia: 20mm
3.Length: 9m, 12m or as per customers' requirements
4.Technology: Hot rolled, left hand
5.Accessories: full hex nut, wing nut, water stop, Combi nut, Anchor nut,Swivel nut, couplers
6.Packing: in bundle
7.Delivery: 15-30 days
COMPOSITION:
The PSB500 thread bar is made of black steel with a continuous right-handed along the entire length of the bar. The continuous threading allows the cut of the bar with different length according to the design requirements and it also improves the adhesion between the bar and grouting.
Typical Applications:
1.Formwork tie bar
2.Formwork tie back
3.Formwork Z bar
4.Mining & Tunneling
Thread Bar Coating for Corrosion Protection:
Black or plain: Standard coating
Coating: galvanized(on request)
Coating: epoxy coating(on request)
contact us
Related popular products
Dia 15mm-830 Post tension bar
Brand : Xingming Standard: GB/T 20065-2016 Weight: 1.47kg/meter Yield/Tensile: 147/182 KN Type: Hot Rolled Material : Carbon Steel; Alloy Steel Thread: Left Hand; Right Hand Quality control: 100% quality inspected Surface: Self Color; Zinc Plated; HDG; Epoxy Coating. Application: Post-Tensioning; Formworks; Geotechnical; Ground Anchors Soil Nailing; Tunneling
Dia 25mm-930 Thread Bar
Brand : Xingming Standard: GB/T 20065-2016 Weight: 4.1 kg/meter Yield/Tensile: 457/530KN Type: Hot Rolled Material : Carbon Steel; Alloy Steel Thread: Left Hand; Right Hand Quality control: 100% quality inspected Surface: Self Color; Zinc Plated; HDG; Epoxy Coating. Application: Post-Tensioning; Formworks; Geotechnical; Ground Anchors Soil Nailing; Tunneling
Anchor Head
Anchor Head – Technical Specifications Brand: Xingming Product Name: Round Anchorage Model Number: YJM
Flat Hex Nut & Spherical Hex Nut
Brand : Xingming Standard: GB/T 20065-2016 Type: Hot Rolled Material : Carbon Steel；45#，40cr Thread: Left Hand; Right Hand Quality control: 100% quality inspected Surface: Self Color; Zinc Plated; HDG Application: Post-Tensioning; Formworks; Geotechnical; Ground Anchors Soil Nailing; Tunneling
Dia 36mm-930 Thread Bar
Brand : Xingming Standard: GB/T 20065-2016 Weight: 8.41 kg/meter Yield/Tensile: 974/1099 KN Type: Hot Rolled Material : Carbon Steel; Alloy Steel Thread: Left Hand; Right Hand Quality control: 100% quality inspected Surface: Self Color; Zinc Plated; HDG; Epoxy Coating. Application: Post-Tensioning; Formworks; Geotechnical; Ground Anchors Soil Nailing; Tunneling
Dia 25mm-500 Thread Bar
Brand : Xingming Standard: GB/T 20065-2016 Weight: 4.1 kg/meter Yield/Tensile: 246/309KN Type: Hot Rolled Material : Carbon Steel; Alloy Steel Thread: Left Hand; Right Hand Quality control: 100% quality inspected Surface: Self Color; Zinc Plated; HDG; Epoxy Coating. Application: Post-Tensioning; Formworks; Geotechnical; Ground Anchors Soil Nailing; Tunneling
Dia 40mm-930 Thread Bar
Brand : Xingming Standard: GB/T 20065-2016 Weight: 10.34 kg/meter Yield/Tensile: 1169/1358 KN Type: Hot Rolled Material : Carbon Steel; Alloy Steel Thread: Left Hand; Right Hand Quality control: 100% quality inspected Surface: Self Color; Zinc Plated; HDG; Epoxy Coating. Application: Post-Tensioning; Formworks; Geotechnical; Ground Anchors Soil Nailing; Tunneling
HDG Nut
Brand : Xingming Standard: GB/T 20065-2016 Type: Hot Rolled Material : Carbon Steel Thread: Left Hand; Right Hand Quality control: 100% quality inspected Surface: Self Color; Zinc Plated; HDG; Epoxy Coating. Application: Post-Tensioning; Formworks; Geotechnical; Ground Anchors Soil Nailing; Tunneling
Spacer
Brand : Xingming Standard: GB/T 20065-2016r Type: Hot Rolled Material : Carbon Steel; PE Quality Control: 100% quality inspected Application: Post-Tensioning; Formworks; Geotechnical; Ground Anchors Soil Nailing; Tunneling
Formwork Accessories
Brand :Xingming Standard: GB/T 20065-2016r Type: Hot Rolled Material : Carbon Steel; PE Quality Control: 100% quality inspected Application: Post-Tensioning; Formworks; Geotechnical; Ground Anchors Soil Nailing; Tunneling
Bridge chord bolts
Raw materials：45# Size：M36*180 M36*250 Surface：Zinc electroplating；Black Oxide Coating Grade：8.8 Typical Application: Bridge chord bolts are used to fasten the connection and tightening of bridge reinforced chords.
Dia 15mm-830 Thread Bar
Brand : Xingming Standard: GB/T 20065-2016 Weight: 1.47kg/meter Yield/Tensile: 147/182 KN Type: Hot Rolled Material : Carbon Steel; Alloy Steel Thread: Left Hand; Right Hand Quality control: 100% quality inspected Surface: Self Color; Zinc Plated; HDG; Epoxy Coating. Application: Post-Tensioning; Formworks; Geotechnical; Ground Anchors Soil Nailing; Tunneling

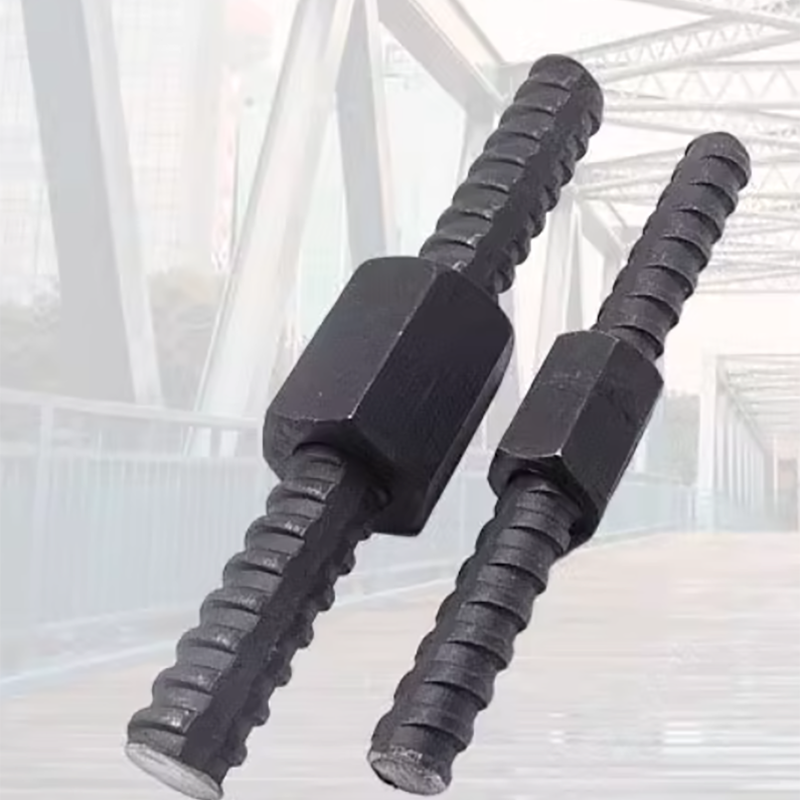

Coupler
