Bailey Bridge Pin
Brand : Xingming
Dimensions: D55*200 Model Number: D55
Hardness Grade: HRC28 – 34 Composition: 40Cr
Material : Alloy Structural Steel
Quality control: 100% quality inspected

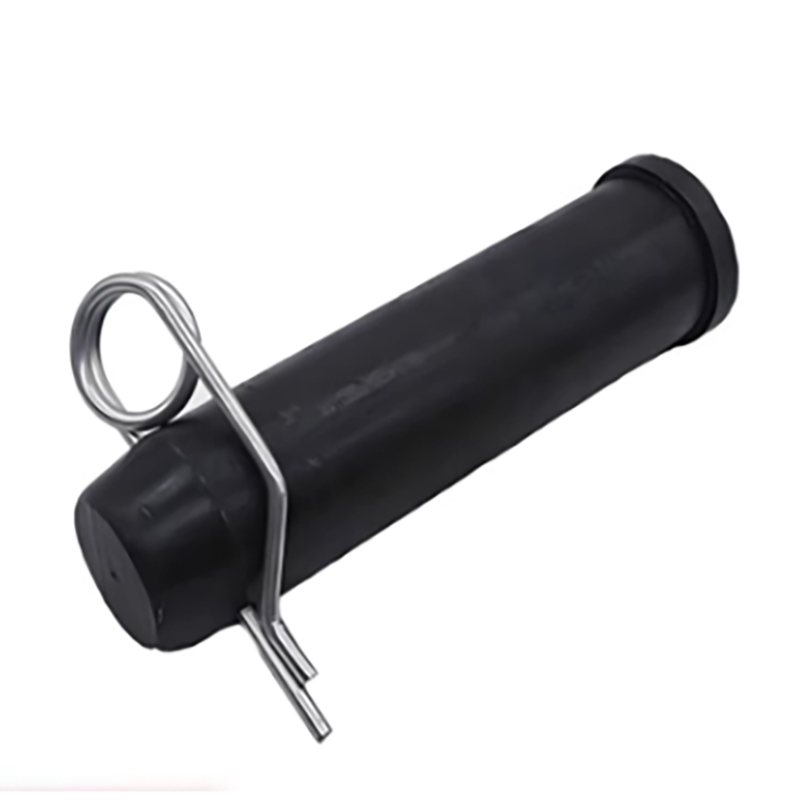

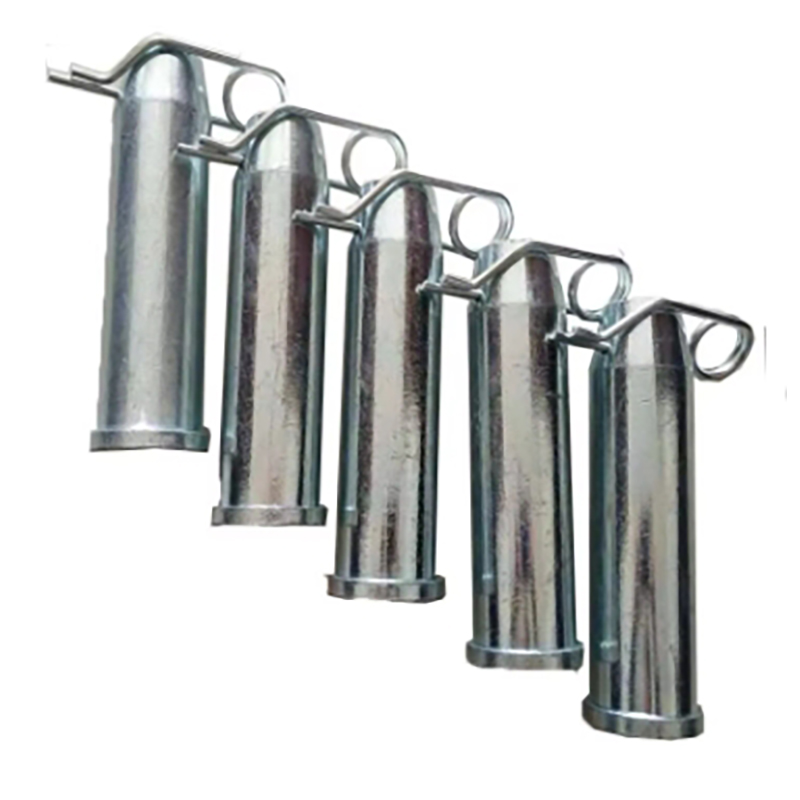

Surface: Electro Galvanized; Black Oxide Coating
Application: Connection of steel bridge trusses
Description
marker
PRODUCT DESCRIPTION
Metal Bailey Bridge Pin
1. Overall Dimensions：Ф55×200
2. Heat Treatment Hardness Grade: HRC28 - 34
3. Material: 40Cr
4. Color: Silver
5. Anti-rust Grade: Electro-galvanized for corrosion protection or black oxide coating
6. Purpose: The connection of 321 steel bridges, 100-type and 200-type steel bridge trusses
7. Usage: Used in combination with special safety pins
PRODUCT DETAILS
The truss pin is a key component specifically used for connecting truss structures. It aims to ensure the stable and reliable.
Splicing among the various components of the truss, and guarantee that the entire truss system can function safely and effectively under different working conditions.
PRODUCT USAGE

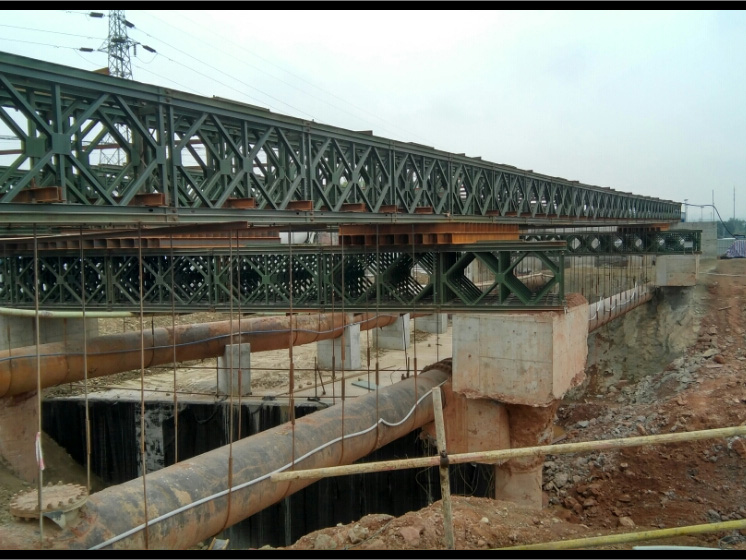

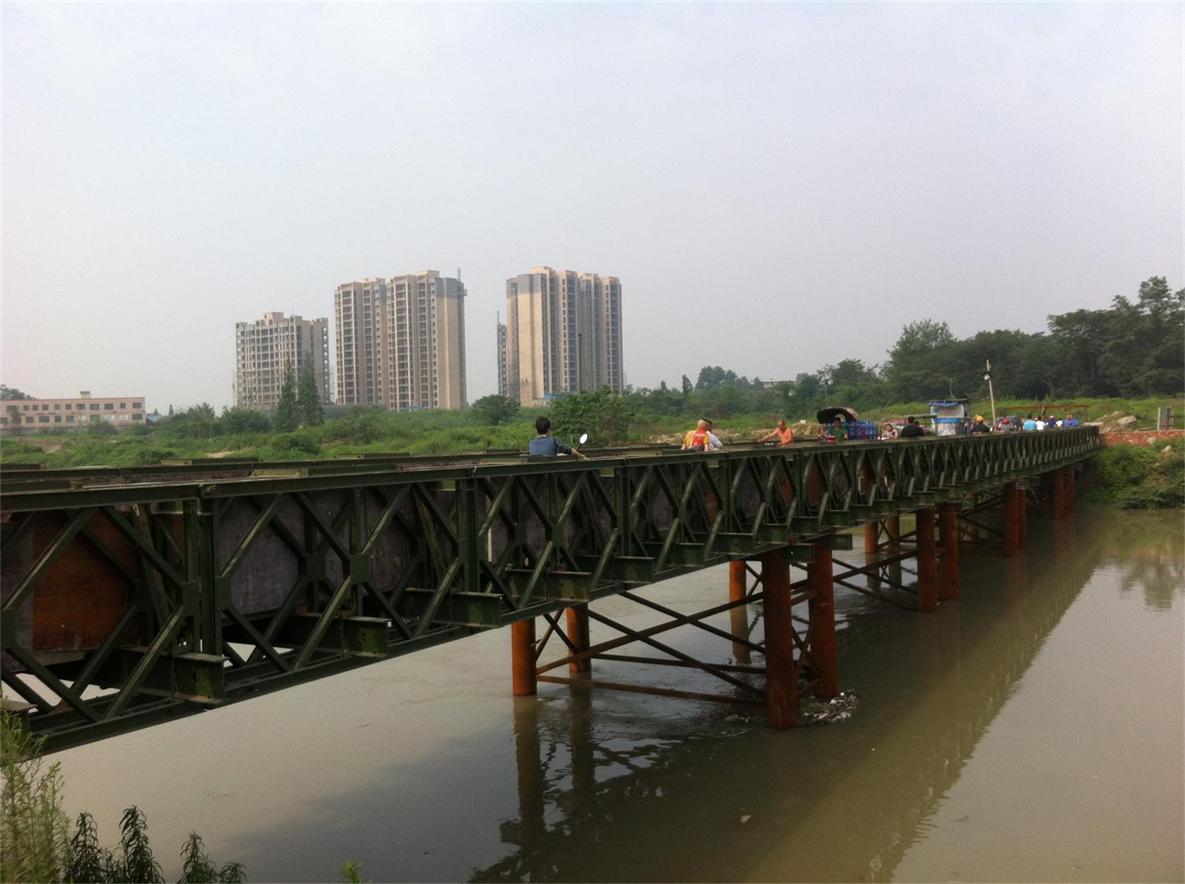

The Bailey bridge is mainly composed of components such as truss units, cross - beams, and longitudinal beams. Truss pins canconnect each truss unit to form the main truss structure of the Bailey bridge.
