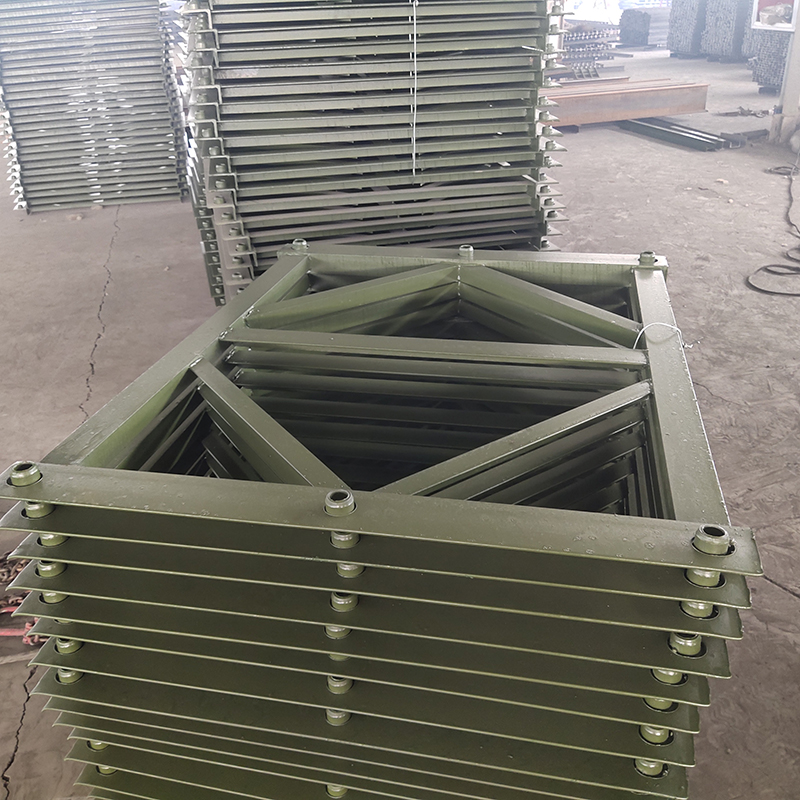

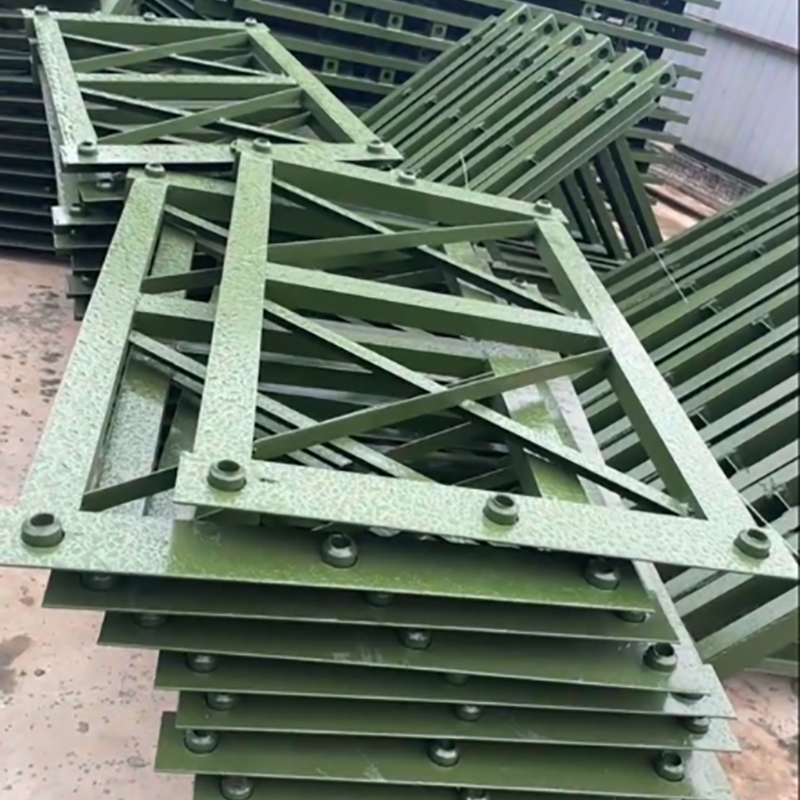

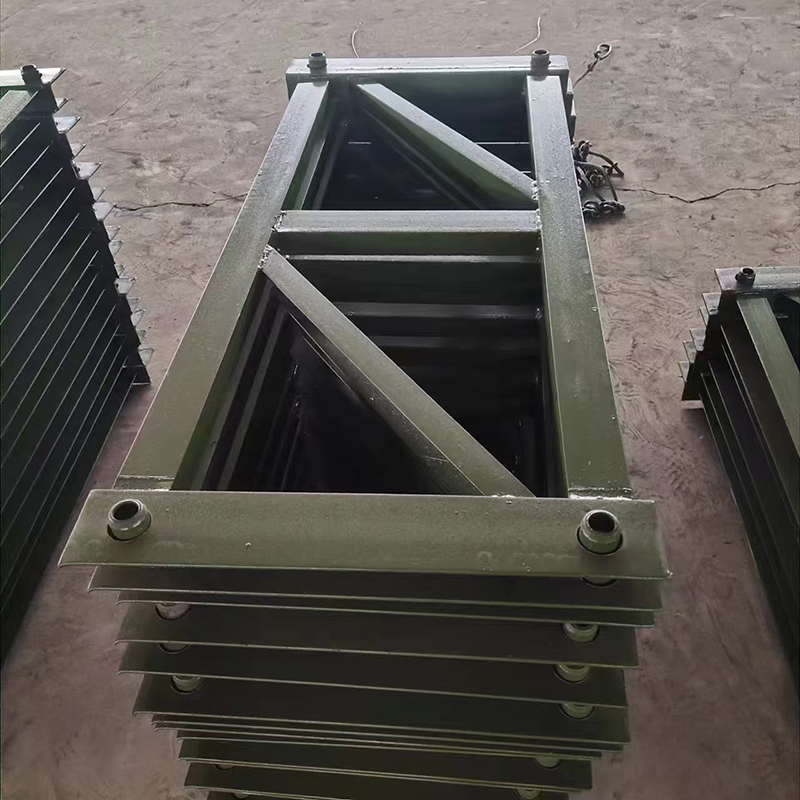

Bailey Bridge Frame
Size: 45/60/90/120/135 series Bailey bridge frame
Brand: Xingming
Place of Origin: Hebei, China
Grade: Q235
Tolerance: ±3%
Standard: GB
Type: Heavy
Surface treatment : custome color
Application: Steel Structure Bridge
Quality control: 100% quality inspected
Processing Service: Welding
Description
marker
Specifications
1.Bailey bridge 45/60/90/120/135 frame
2.parts of bailey bridge
3.high quality and low price
4.Factory export directly
Product Description
Function: used as various steel bridge and bailey frame.
Features:
1. Attractive design: the whole looks beautiful and elegant.
2. Light weight and convenient in shipping
3. Easy to assemble and dismantle: the warehouse can be rebuilt for dozens of times. The assembling only requires simple tools.
4. Firm structure: the warehouse adopts steel frame structure and sandwich panels.
5. Durable: the steel frame parts are all processed with anti-corrosion coating.
