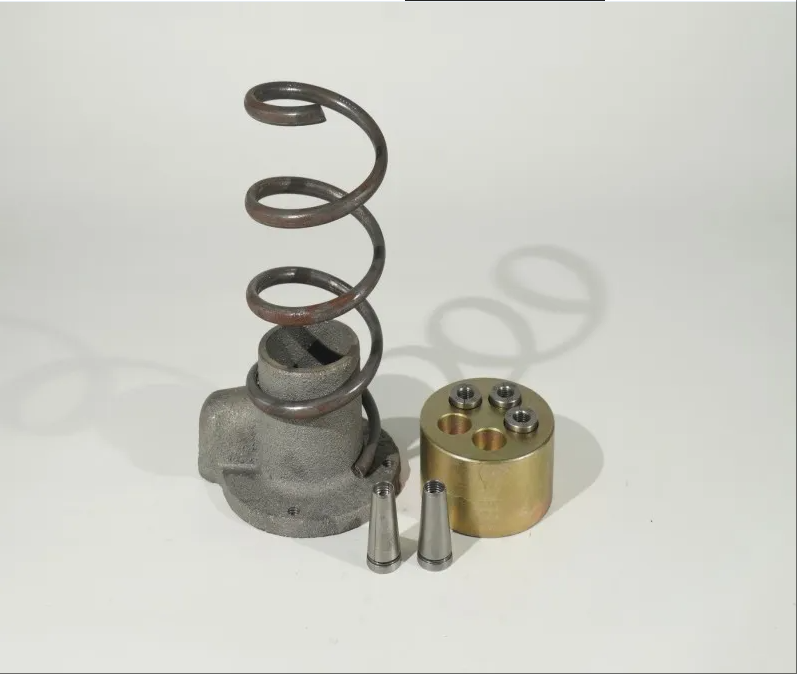

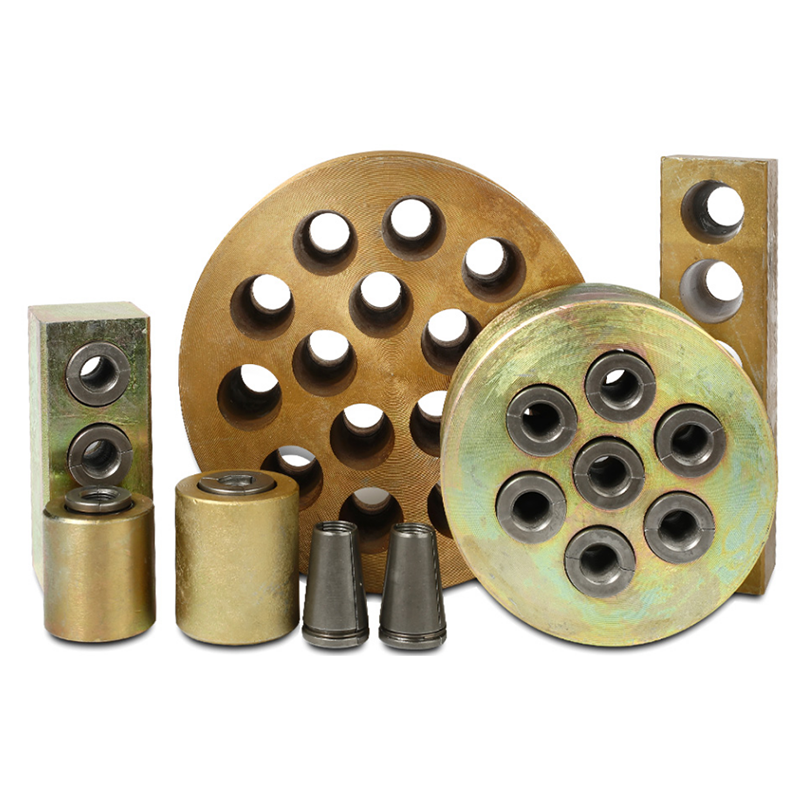

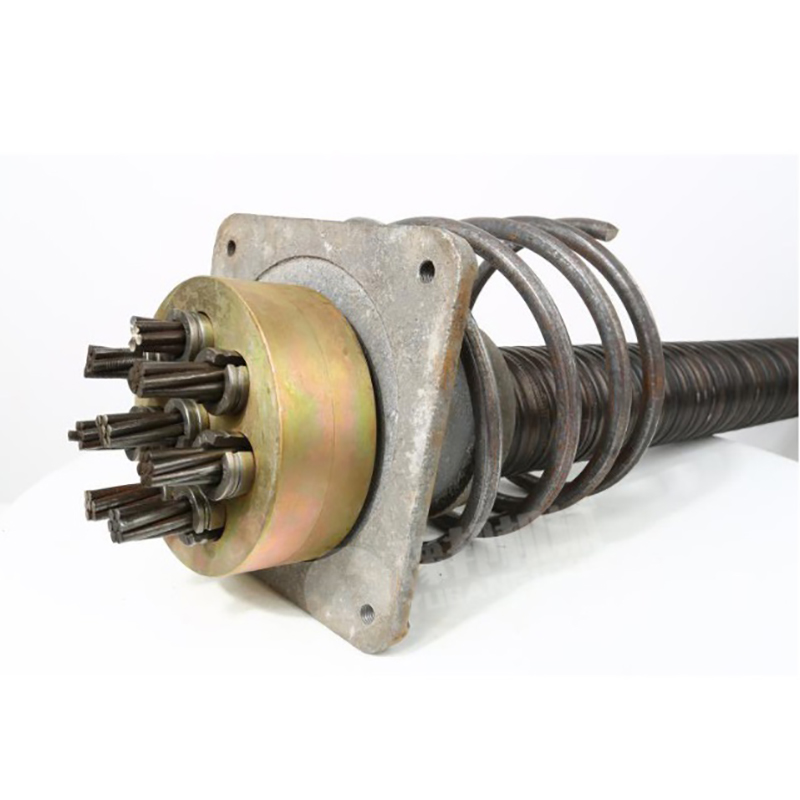

Anchor Head
Anchor Head – Technical Specifications
Brand: Xingming
Product Name: Round Anchorage
Model Number: YJM
Description
marker
1.Key Parameters
Size Range: 12.7mm or 15.2mm
Hole Capacity: 1-55 holes
Type: Live-end
Surface Treatment:
- Black oxide coating (standard)
- Yellow zinc plating (optional)
Compliance Standards: GB/T 14370-2015
2.Material Specifications
Anchorage Body: 45# or 40Cr
3.Packaging:Export wooden case, wooden pallet, carton box
4.Application Range
- Civil Engineering: Prestressed concrete bridges, viaducts
- Transport Infrastructure: High-speed rail systems, highway overpasses
- Building Construction: High-rise foundations, seismic structures
- Special Projects: Nuclear containment, offshore platforms
